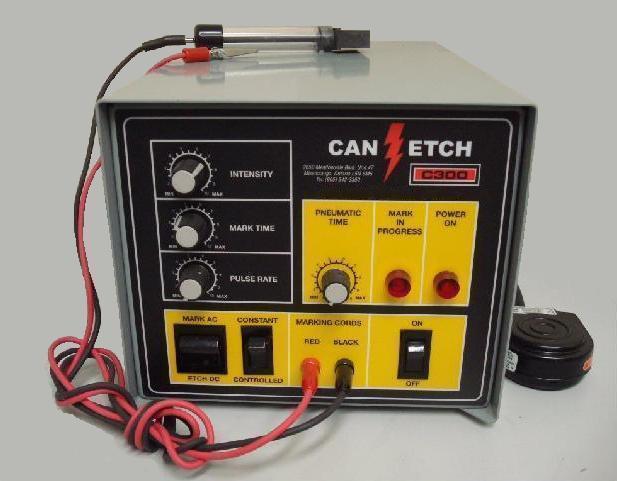

CanEtch™ C300 (Advanced)
The Can-Etch™ 300 is our Advanced Power Etching Unit with electronic control designed for higher volume
and deep etching use along with a output control voltage to Automated marking.
The optional Automated System consists of a flat table top base with vertical extruded arm that a bracket and
air cylinder is attached along with a carbon marking head on the end of the cylinder rod. The C300 power etching
unit control the air cylinder via its output jack connection.
Also this unit has all of the features of the 200 series unit but with with a larger transformer for greater AC/DC power output and current along with more robust internal components can mark dark/deep and efficiently almost any metal materials.
C200 Features:
On/Off Unit Power Switch
Unit Power Indicator Lamp
AC/DC Output Switch
Power Output Jacks (Red/Black)
Variable Output Potentiometer (Intensity)
Mark Time Potentiometer (Adjustable Marking Time)
Constand/Controlled Switch
Electronic Pulse Control (Output switched On/Off)
Foot Pedal (Starts marking process)
* Output Voltage control jack (Controls Air Operated Cylinder for Automated Marking)
5-40Vac/Vdc
8Amp Fuse
